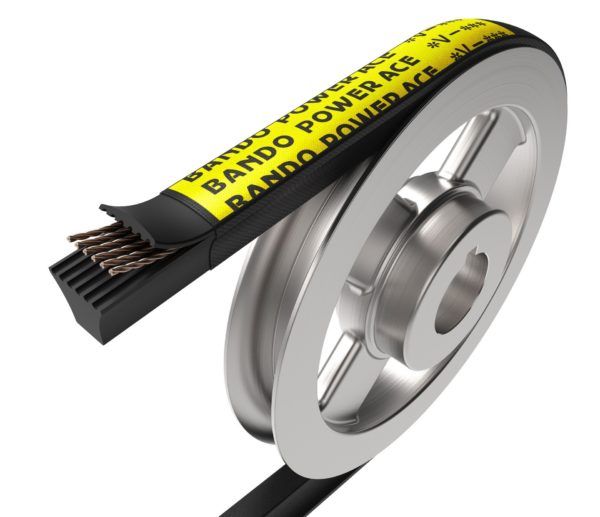

POWER ACE V-Belts

POWER ACE V-Belts according RMA Standard

These high performance Narrow V-belts can be used in all industrial sectors.

BANDO POWER ACE Narrow V-Belts require much less space – at the same load – as conventional drive belts, i.e., their transmission capacity in the same space requirements – is much higher. These extraordinary product characteristics are based on optimized profile characteristics and on the use of very high quality materials.

Product Characteristics

• Matching-free
• Temperature resistant from – 30° to +90°C
• Electrically conductive
• Limited oil resistance
• Highly fire resistant
• Particularly resistant to environmental influences like heat, ozone, sunlight and effects of the weather.

Belt Construction

• Neoprene impregnated canvas
• Strong polyester tension members
• Neoprene insulation rubber
• Neoprene compression rubber

Dimension and Size Marking

Standard Sizes

Table 1: Bando Power Ace V-Belts

Typ	Top width bo [mm]	Thickness h [mm]	Angle [ ° ]	Download
3V	9,5	8,0	40
5V	15,9	13,5	40
8V	25,4	22,2	40
