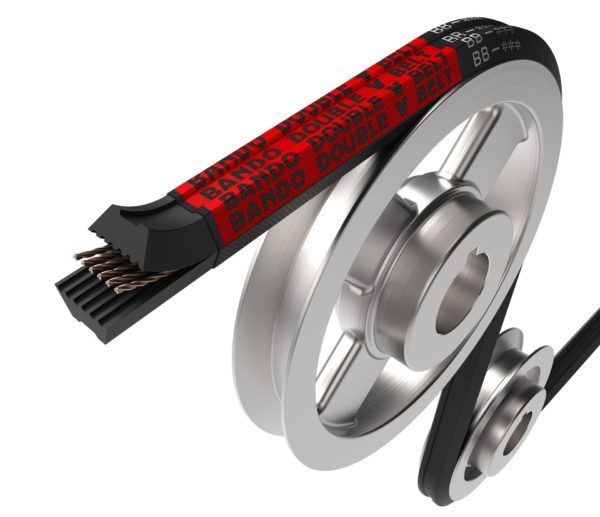

BANDO Double V-belts were designed specially for reverse-bend serpentine drives.
The new cross profile maintains proper belt position in the pulley grooves even in extreme reverse-bend drives. Special woven canvas leads to higher flexibility. As a result of the higher flexibility and the new cross profile, the service life of BANDO Double V-Belts is increased by about 40%.
Product Characteristics
- Temperature resistant from – 30° to +90°C
- Electrically conductive
- Limited oil resistance
- Highly fire resistant
- Particularly resistant to environmental influences like heat, ozone, sunlight and effects of the weather.

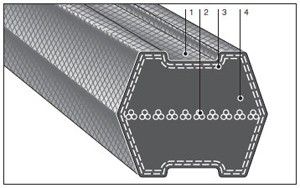

Belt construction
- Rubber impregnated special woven canvas
- Strong polyester tension members
- Chloroprene insulation rubber
- Chloroprene compression rubber
Dimension and Size Marking
Standard Sizes
| Typ | Top width bo [mm] |
Thickness h [mm] |
Angle [ ° ] |
Download |
|---|---|---|---|---|
| AA | 12,5 | 10,3 | 40 |  |
| BB | 16,5 | 13,5 | 40 | |
| CC | 22,0 | 18,0 | 40 | |
