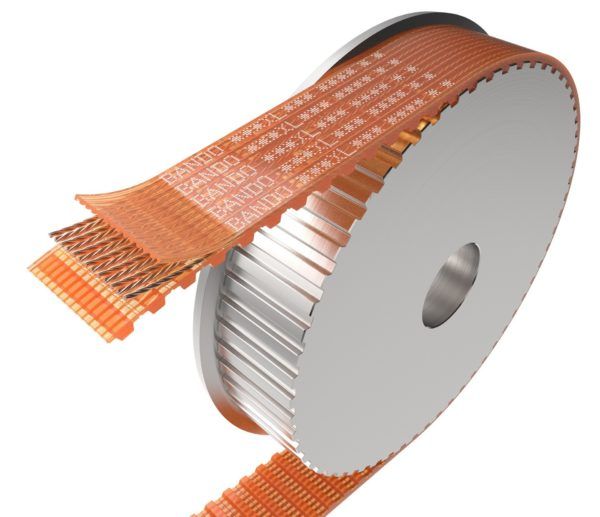

Bancollan Timing Belts from highly durable polyurethane with steel cords are used in all industrial sectors.
Product Characteristics
- Synchronous running
- Length stability
- High rate of efficiency (up to 98 %)
- No maintenance
- Chemical resistance to oils, fats, acids and lyes
- Wide operating temperature range (-30°C to + 70°C, possibly higher for a short time)
Belt Construction
- Polyurethane backing
- Standard tension members
MXL, DMXL = Kevlar cord
all others = steel cord - Polyurethane teeth
Drawing
Size Marking
Standard Sizes
Table 1: Available Sizes of Bando Bancollan Timing Belts (single/double)
| Typ | t (mm) |
H1 (mm) |
H2 (mm) |
W (mm) |
s° (angle) |
Download |
|---|---|---|---|---|---|---|
| T2,5 | 2,50 | 1,30 | 0,70 | 1,00 | 40 |  |
| T5 | 5,00 | 2,20 | 1,20 | 1,80 | 40 | |
| T10 | 10,00 | 4,50 | 2,50 | 3,50 | 40 | |
| MXL | 2,032 | 1,20 | 0,51 | 0,76 | 40 | |
| XL | 5,080 | 2,25 | 1,25 | 1,35 | 40 | |
| L | 9,525 | 3,50 | 1,90 | 3,20 | 40 | |
