Bando Synchronous Belts have been applied in all industrial sectors worldwide for many years. Maximum quality requirements with respect to material and production processes guarantee the following
Product Advantages
- Synchronous running
- No maintenance
- Low storage requirements
- Space and weight savings

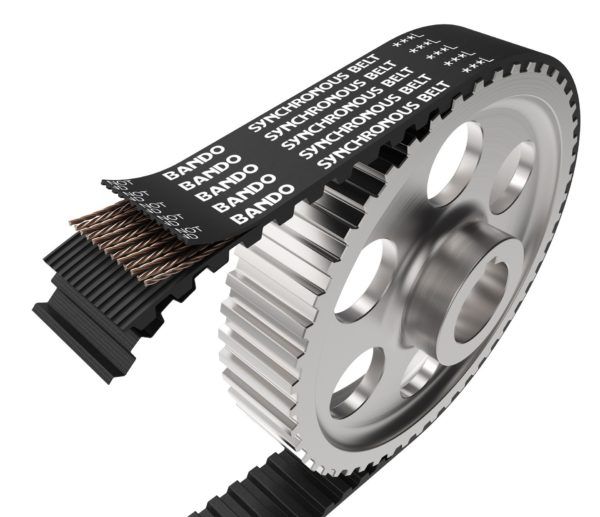

Belt Construction
- Neoprene rubber backing (single toothed)
- Tension members
- Neoprene-teeth
- Nylon fabric canvas
Dimension and Marking
Standard Sizes
Table 1: Available Sizes of Bando toothed belts (single/double)
| Typ | t (mm) |
t (inch) |
H1 (mm) |
H2 (mm) |
W (mm) |
ß° (angle) |
Download |
|---|---|---|---|---|---|---|---|
| MXL | 2,032 | 0,08 | 1,10 | 0,51 | 0,76 | 40 |  |
| XL | 5,080 | 1/5 | 2,25 | 1,25 | 1,35 | 40 | |
| L | 9,525 | 3/8 | 3,50 | 1,90 | 3,20 | 40 | |
| H | 12,700 | 1/2 | 4,30 | 2,30 | 4,40 | 40 | |
| XH | 22,225 | 7/8 | 11,30 | 6,30 | 8,00 | 40 | |
| XXH | 31,750 | 1 1/4 | 15,80 | 9,60 | 12,20 | 40 | |
| DXL | 5,080 | 1/5 | 3,00 | 1,25 | 1,35 | 40 | |
| DL | 9,525 | 3/8 | 4,55 | 1,90 | 3,20 | 40 | |
| DH | 12,700 | 1/2 | 5,95 | 2,30 | 4,40 | 40 | |
