Responding to the needs for “Energy conservation” and “High-Power transmission” on industrial machinery in recent years, Bando has developed the “High Performance STS belt”, capitalizing on our time-proven technology and experience.
Characteristics
Exceptionally high power transmission capacity:
The High Performance STS Belt achieves approximately 1.4 to 1.8 times greater power transmission than conventional STS belts.
Compact design:
The high power transmission enables belt width to be minimized, thus making system design as compact as possible.
Low noise:
The minimal belt width enables low noise operation.
*Konventionelle standardmäßige Scheiben können ebenfalls eingesetzt werden.
*Standard Riemenabmessungen können produziert werden.

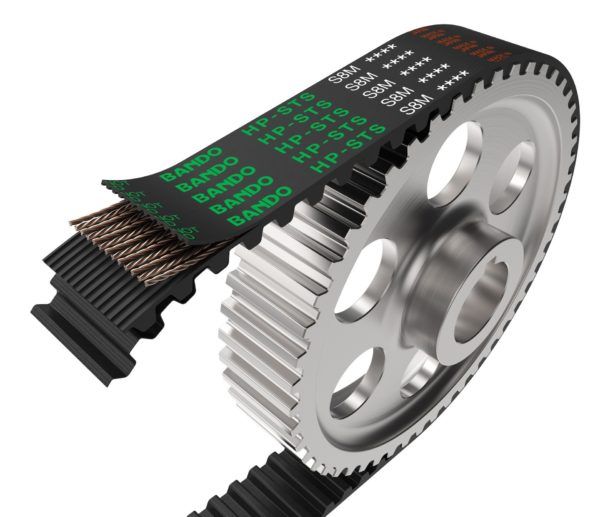

Belt Construction
1./3. Rubber:
Synthetic rubber having less tooth deformation and a high level of hardness.
2. Tensile member:
Fibreglass tension member, with consideration for dimensional stability and flexibility.
4. Tooth canvas:
The tooth canvas has asperities on the surface and provides a low friction coefficient, accomplishing a low noise level of operation.
Furthermore, the S14M type provides two-ply tooth canvas which enables further reductions in noise levels and improved durability. The HPS-5M type is only available for clean specifications.
Size Marking
Dimension
| Typ | P | H1 | H2 | B | Download |
|---|---|---|---|---|---|
| HP-S5M | 5.00 mm | 3.61 mm | 1.91 mm | 3.25 mm |  |
| HP-S8M | 8.00 mm | 5.00 mm | 3.05 mm | 5.20 mm | |
| HP-S14M | 14.00 mm | 3.70 mm | 5.30 mm | 9.10 mm | |
