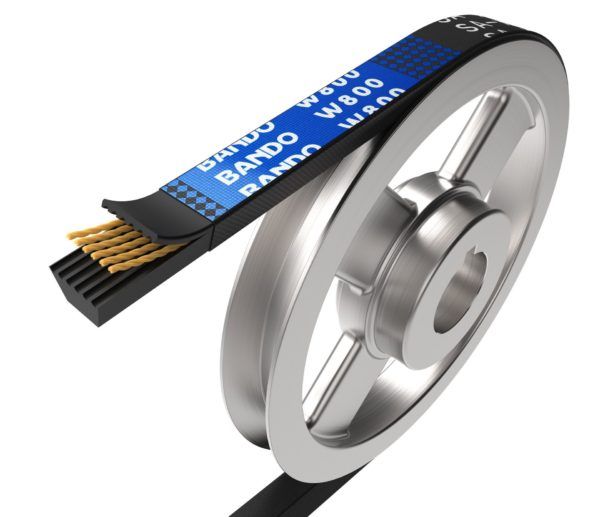

W800 Agricultural V-Belts

Price Not Announced

In Stock

Posted in .

The W800 belts are specially suited for drives with backside idlers to make full use of agricultural machinery capabilities.

As agricultural machinery increasingly enhances its performance and functions, the quality required for V-belts used is going upscale.
In the fine quality market, there are cases where agricultural machinery should use more than the RED-S II in order to thoroughly deliver performance. Bando has launched the Series W800, the highest quality among V-belts for agricultural machinery on the market.

Belt Construction

RED-S-II-belt

  1. Chloroprene impregnated canvas
  2. Aramid tension members
  3. Chloroprene insulation rubber
  4. Chloroprene compression rubber
Product Characteristics
  • temperature resistant from – 30° to +90°C
  • anti-static
  • limited oil resistance
  • highly fire resistant
  • particularly resistant to environmental influences like heat, ozone, sunlight and effects of the weather.
Dimensions and Size Marking

A01_02_Drawing

A01_03_size-mark

Standard Sizes

Tabelle 1: Available Sizes of BandoAgriculture V-Belt W800
Typ Top width
bo [mm]
Thickness
h [mm]
Download
SA 13,0 7,0 40
SB 17,0 9,0 40
SC 22,0 11,0 40



Tabelle 2: Feature Comparision – Numerical values shown above represent indexes when taking the standard V-belt as 100
Characteristic Standard
V-Belt
RED-S II W800
Power transmission capacity 100 150 300
Service life against reverse bending 100 450 1800
Service life against shock 100 150 450
Material chloroprene
Product-type v-belt
Industry Agriculture
