RED-S II Agricultural V Belts

BANDO RED-S II Agricultural V Belts were developed especially for agricultural machinery with reverse-bend drives.

Category:

Description

BANDO RED-S II Agricultural V Belts were developed especially for agricultural machinery with reverse-bend drives.

These belts are especially suited for drives with backside idlers.

The reduced belt thickness and the optimized position of the tension members increase the service life of RED-S II V-Belts by many times compared to conventional V-belts.

This belt type is especially suited for agricultural and horticultural equipment.

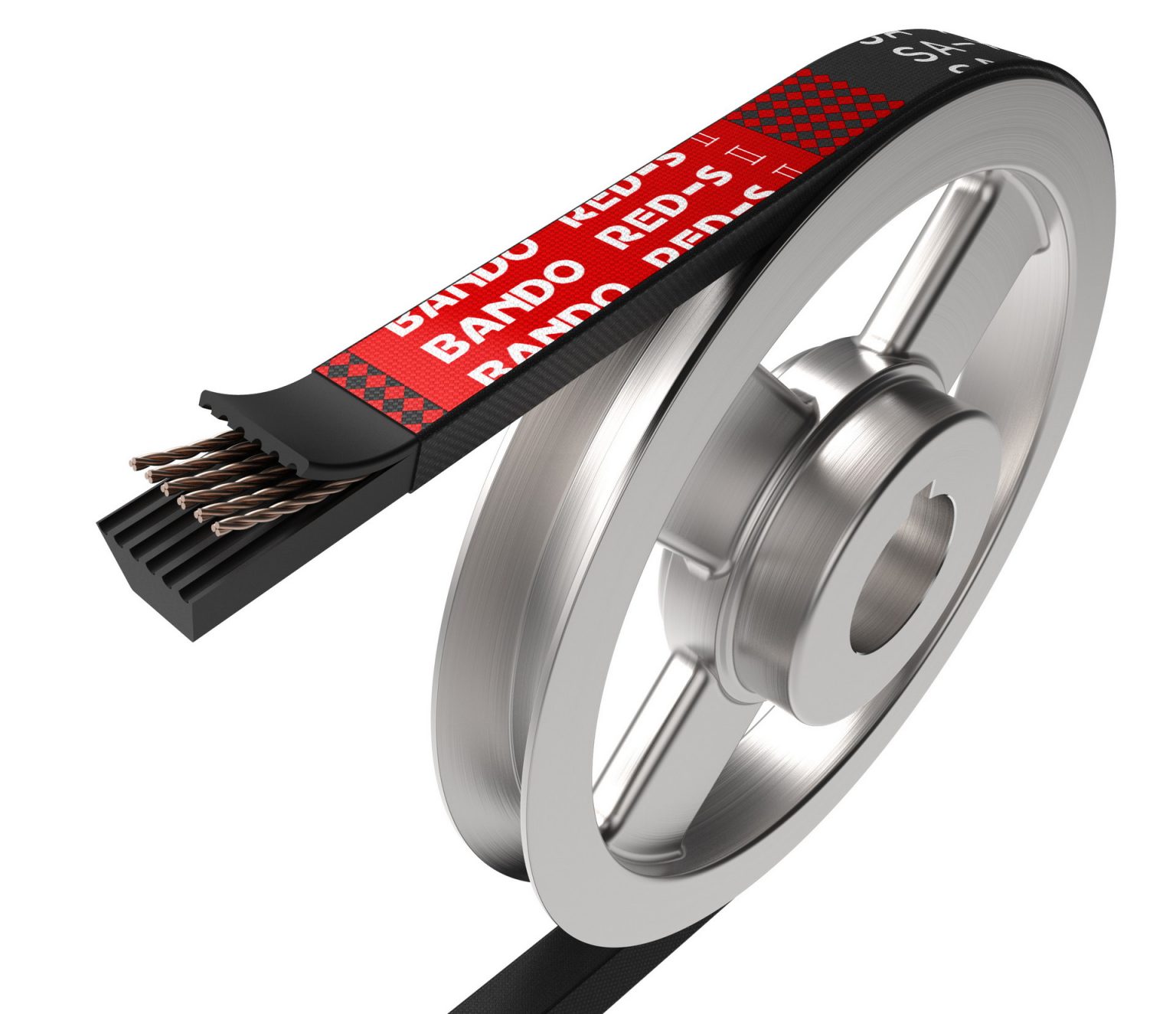

Belt Construction for Agricultural V Belts

BANDO RED-S II V Belts were developed especially for agricultural machinery with reverse-bend drives.

  1. Chloroprene impregnated canvas
  2. Polyester tensile members
  3. Chloroprene insulation rubber
  4. Chloroprene compression rubber

Product Characteristics

  • temperature resistant from – 30° to +90°C
  • anti-static
  • limited oil resistance
  • highly fire-resistant
  • particularly resistant to environmental influences like heat, ozone, sunlight and effects of the weather

Dimension & Size Marking

BANDO RED-S II V Belts were developed especially for agricultural machinery with reverse-bend drives.BANDO RED-S II V Belts were developed especially for agricultural machinery with reverse-bend drives.

Size List

Tabelle 1: Available Sizes of BandoAgriculture V-Belt RED S II
Typ Top width
bo [mm]
Thickness
h [mm]
Angle B[°] DownloadSize List
SA 13,0 7,0 40 icon_pdf
SB 17,0 9,0 40 icon_pdf
SC 22,0 11,0 40 icon_pdf

Brochure: RED-S II Agricultural V-Belts

Brochure including additional information:



20190109 RED S II Agriculture EN Web 1
